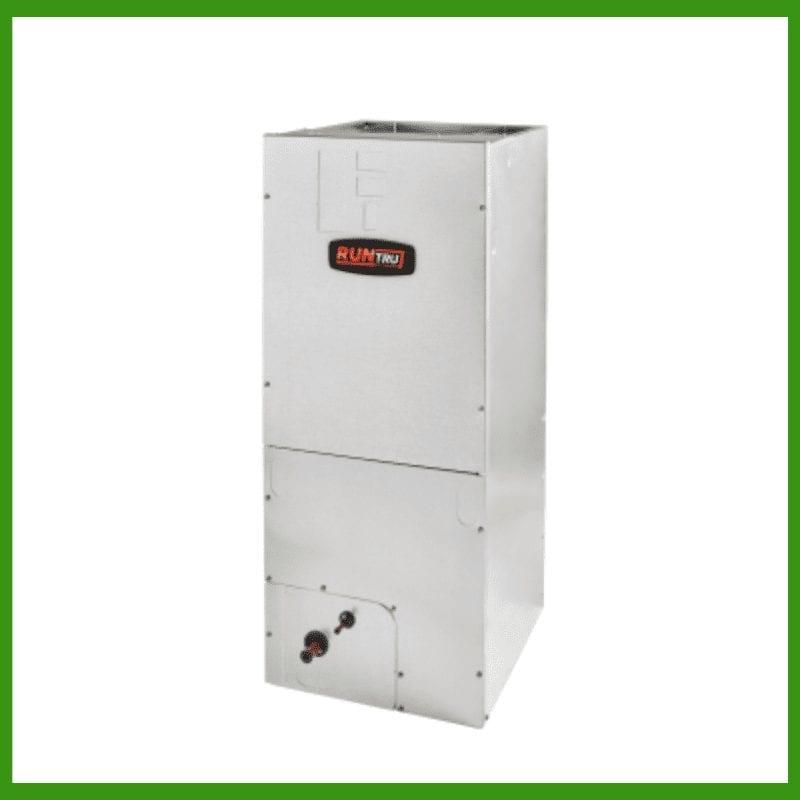

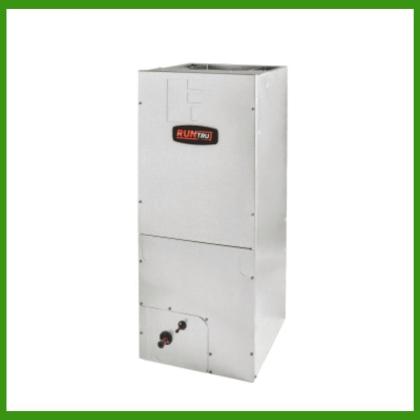

The Trane RunTru A4AH4 Series 4 Ton 15 SEER 48000 BTU Single Stage Multi-Position 1/2 HP Air Handler A4AH4E48A1C30A is a powerful air handler from Trane capable of delivering the best heating experience for a homeowner. With several reliability and durability measures set in place, Trane has intended the A4AH4 Series Air Handler to serve the customer for many years to come. The galvanized steel panels, premium quality material, and professional finish make the Single Stage Air Handler a joy for any owner.

Along with this, the Multi-Position Air Handler allows for flexible installation without sacrificing build quality or costs. Finally, with the A4AH4, you will be the proud owner of yet another efficient Trane HVAC unit.

Features of Trane RunTru 4 Ton 15 SEER 48000 BTU Single Stage Air Handler A4AH4E48A1C30A
Highly sought after 15 SEER rating.
Painted galvanized steel cabinets.
High durability by design.
Premium build quality and finish.
Multiple airflow designs with vertical upflow/downflow and horizontal left/right.
Dual drainage spouts for easier installation.
Specifications of Trane RunTru A4AH4 Series 4 Ton 14 SEER 48000 BTU Single Stage Multi-Position 1/2 HP Air Handler A4AH4E48A1C30A
Air Handler General Specifications
Capacity 48000 BTU
Tonnage 4 Ton
Equipment type Straight Cool
Air Flow Multi-Position
Stages Single Stage
Minimum Circuit Ampacity 2.11 A
Max. Overcurrent Protection 15 A
Horsepower 1/2 HP
Air Handler Dimensions
Air Handler Height (Uncrated) 54.5 In
Air Handler Width (Uncrated) 22 In
Air Handler Depth (Uncrated) 24 In
Pipe Connection Size 3/4 NPT
Connection Size – in. Gas 7/8 In
Connection Size – in. Liquid 3/8 In
Air Handler Weight
Air Handler Weight 159 lbs.
Shipping Weight 177 lbs.
