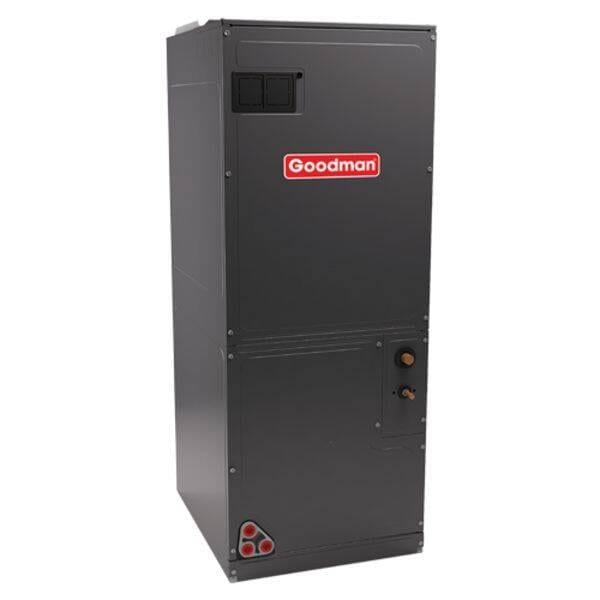

Goodman’s air handler line is well-known for its extraordinary performance – Goodman 5 Ton 60000 BTU AVPTC Variable-Speed AC Air Handler AVPTC61D14 is no exception. It has a number of useful features that enhances performance of your home HVAC system.

Features of Goodman 5 Ton 60000 BTU AVPTC V/S Air Conditioner Air Handler AVPTC61D14 with SmartFrame Cabinet
It features an evaporator coil made entirely with Aluminium that serves as the base of all efficient heat transfer.
It is corrosion and rust-resistant
Increased operational efficiency with the variable-speed motor
Smartframe™ substructure for improved lateral strength
Silent operation and optimum efficiency
Specifications of Goodman 5 Ton 60000 BTU AVPTC Variable-Speed Air Conditioner Air Handler w/ SmartFrame Cabinet AVPTC61D14
Air Handler Specifications
Product Line AVPTC
Refrigerant R-410a
Motor Type ECM
Blower Motor Variable-Speed
Configuration Multi-Position
Install Area Indoor
Capacity 5 Ton
Cooling 60000 BTU
Airflow (Max) 2035 CFM
Airflow (Min) 1360 CFM
Air Handler Electrical Data
Voltage 208/230 V
Phase 1
Frequency 60 Hz
Minimum Circuity Ampacity 9 Amps
Recommended Breaker Size 15 Amps
Air Handler Dimensions
Suction Conn. Size 7/8 Inches
Liquid Conn. Size 3/8 Inches
Air Handler Height 58 Inches
Air Handler Width 24.5 Inches
Air Handler Depth 21 Inches
Air Handler Weight
Air Handler Weight 112 Pounds
Shipping Weight 167 Pounds
