DESCRIPTION

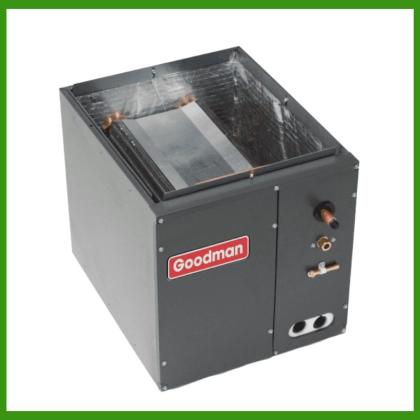

The Goodman 3 – 3.5 Ton 42000 BTU CHPF Horizontal Air Conditioner Evaporator Cased Coil CHPF3642C6 is an excellent cased coil for your HVAC system as it comes fitted with all the latest features and enhancements from Goodman.

Product Number: CHPF3642C6

Category: Goodman Cased Coil

Tags: 3 – 3.5 Ton, 3 – 5 Ton, 3 Ton, 36000 BTU, 42000 BTU, Cased Coil, CHPF, CHPF3642C6, Evaporator Coil, Goodman, Horizontal

PRODUCT DESCRIPTION
Square Installments
The Goodman 3 – 3.5 Ton 42000 BTU CHPF Horizontal Air Conditioner Evaporator Cased Coil CHPF3642C6 is an excellent cased coil for your HVAC system as it comes fitted with all the latest features and enhancements from Goodman. In addition to the premium aluminum construction and grooved tubing, Goodman ensures that the coils pass through the rigorous set of sets designed to detect flaws in the system.

Features of Goodman 3 – 3.5 Ton 42000 BTU CHPF Horizontal Air Conditioner Evaporator Cased Coil CHPF3642C6
The cased coil is put through a rigorous test before being shipped out to be fitted with your HVAC system.
It comes with grooved aluminum tubing which greatly increases the surface area for energy transfer.
Premium-grade aluminum is used in the construction of the CHPF to allow for long-term operation.
Specifications of Goodman 3 – 3.5 Ton 42000 BTU CHPF Horizontal Air Conditioner Evaporator Cased Coil CHPF3642C6
Cased Coil Specifications
Tonnage 3 – 3.5 Ton
Cooling BTU 42000 BTU
Nominal Min. Cooling Capacity 36000 BTU
Coil Type Evaporator Cased Coil
Configuration Horizontal
Refrigerant Type R-410A
Cased Coil Dimensions
Suction Connection 3/4 Inch (es)
Liquid Connection 3/8 Inch (es)
Coil Height 21 Inch (es)
Coil Width 26 Inch (es)
Coil Depth 21.125 Inch (es)
Cased Coil Weight
Coil Weight 63 Pound (s)
Coil Shipping Weight 73 Pound (s)
