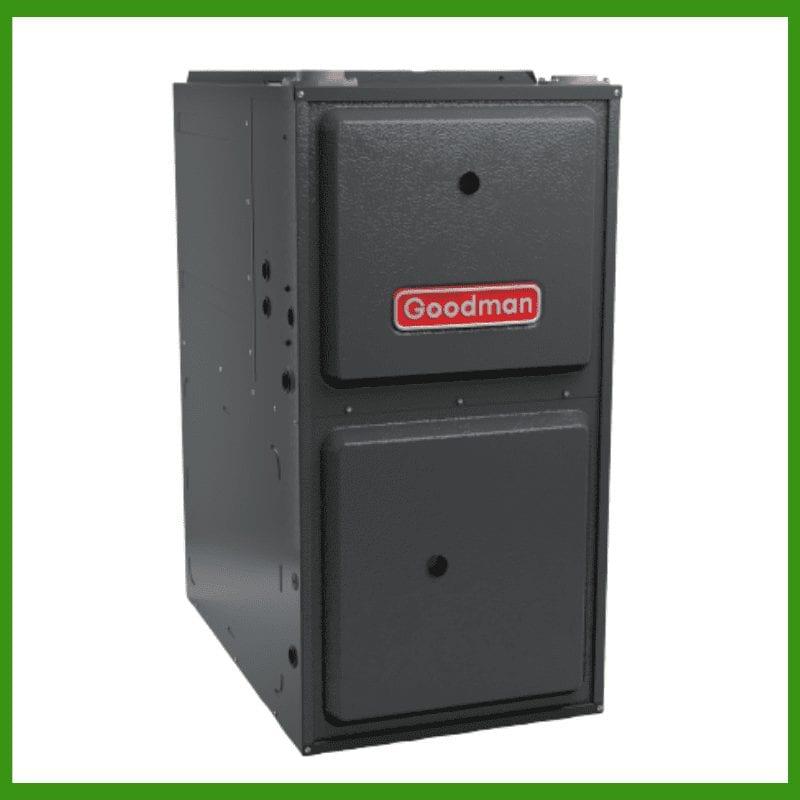

A lot of engineering effort went into Goodman 80000 BTU Single Stage Gas Furnace GMS80804BN. Thankfully the efforts from Goodman team paid off & we got this outstanding performer.

It offers some major advantages over others and that’s why we used Goodman 80000 BTU Single Stage Gas Furnace GMS80804BN in our 4 Ton 14 SEER complete gas system. Here are some of the most notable features of this unit –

4-Speed circulator blower motor for proper heat distribution
Unique tubular design for the heat exchanger that allows for an outstanding heat transfer rate
Energy-efficient motor keeps the bills on check
Aluminized steel construction for maximum integrity
Silent-operating blower motor
Smart self-diagnostic control board panel for intended solid performance
Insulated cabinet for minimum air leak (as low as 2%)
Easy troubleshooting and maintenance thanks to the smart control board
Gas Furnace Specifications: –
General Information
Type Gas Furnace
Fuel Type Natural Gas
Vent Type Chimney Vent
Blower motor PSC Multi-speed
Modulating/Staging Single Stage
Gas Conversion Kit Available
Configuration Upflow/Horizontal
UPC 663051543782
Performance
Heating 80000 BTU
High Fire Input 80000 BTU
High Fire Output 64000 BTU
Low NOx Emissions No
Minimum Air flow 1600 CFM
AFUE 80%
Dimensions


Flue Connection Size 4 Inches
Cabinet Width 17 1/2 Inches
Product Depth 28 3/4 Inches
Product Height 33 3/8 Inches
Product Width 17 1/2 Inches
Shipping weight 106 Pounds
Dimensions


Frequency 60 Hz
Phase 1
Minimum Circuit Ampacity 12.5 A
Recommended Breaker Size 15 A
Certifications
Country Of Origin U.S.
ISO Certified Yes
AHRI Certified Yes
ETL Listed Yes
AHRI 5012601
Warranty Information
Parts Warranty 5 Years
Heat Exchanger Warranty 20 Years
