AUTOMATIC COATING SYSTEM Have Been Designed After A Careful Study Of The Needs Of Expert Coaters Such As Rotational Speed, Efficient Ahu System, Inlet & Exhaust Air Cfm & Efficient Solution Spraying System Etc. To Supplement The Need Of Correctly Designed, Versatile Coating System.
Special Features:
12” & 24” Model Are On Wheel & 36”, 48” & 60” Model With Anti Vibrating Unit Provided For Proper Leveling, Hence No Requirement Of Foundation.
Double Wall Puf Insulated Apu (AHU) With Aluminum Framing, Inside Aluminum Or G.I. Sheeting From Air Inlet To Hepa Filter And Ss Sheeting From Hepa Filters To Onwards, Outside Powder Coated Galvanized Sheeting, With Pre Filters And Micro V Filters In G.I. Or Aluminum Box, Air Inlet Blower, Hepa Filter In Ss Box, Cooling Coil In Copper Tube And Aluminum Fins, Phase And By Pass Damper & Heating Coil Made Out Of Ss Tube & Aluminum Fins. (If Steam Heated Model) And Electrical Heaters (if Electrically Heated Model).
Rh Sensor At Air Inlet Line.
Differential Pressure Gauge At Hepa Filter And Process Chamber .
Inlet Air, Product Bed & Exhaust Air Temperature Sensor.
Variable Frequency Drive For (AC Drive) Pan Drive Motor, Inlet Air & Exhaust Air Blower.
Pan Rpm Indication Facility.
Flp Lamp.
Port With Spray Ball For Cip.
Inlet Air Blower.
Exhaust Air Blower.
Solution Preparation Vessel With Propeller Type Stirrer With Variable Rpm Facility. (Plain – Non Jacketed – Non Flp Model).
Pan Drive Motor Flameproof.
Spraying Nozzle.
Peristaltic Pump.
Manually Operated Atomizing Air Pressure Regulator & Fan Width Pressure Regulator.
Butterfly Valve At Inlet & Exhaust Air Duct With Actuator.
Plc Based Power Panel With Touch Screen Based Operating Panel.
Inlet & Exhaust Air Duct

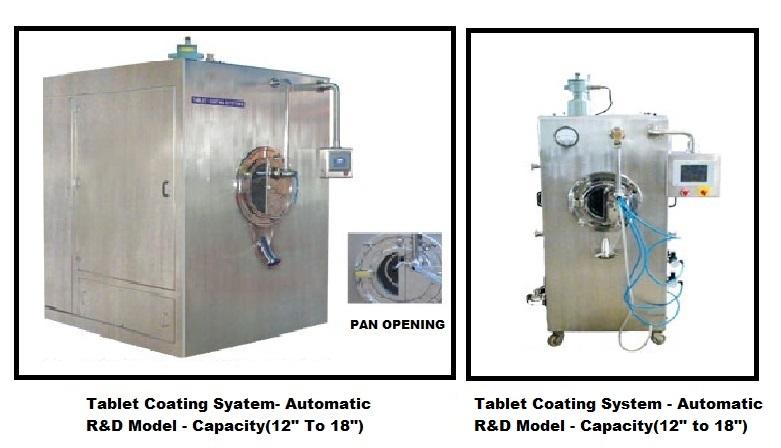

Tablet Coating System – Automatic : Models 12"/18"/24"/36"/48"/60" And Automatic R & D Model Model: 12" To 18"
