THE MASS MIXER Machine Is Basically Mixing A Assembly Where In The Mixing Stirrer Is In Horizontal Position In The Container & Have A Single Speed, Simple Rotation. The Stirrer Rotates Around Itself At A Very Slow Speed Inside The Bowl And Thereby Achieving Intimate Mixing Of Dry Or Wet Materials Of Tablet Granulation, Powder, Chemicals, Food & Confectionaries Etc.

Special Features:
Special Design Feature Of Machine & Stirrer, The Mass Mixer Can Be Mix The Sticky Materials & Also Uniformally And Intimately Mix The Materials Which Are To Be Difficult To Mix.
Range Of Models To Suit Working Volume 50,100 & 200 Kg. At Bulk Density Of 0.50 Gm/Cc.
All Contact Parts Are Made Out Of S.S.304 Quality Material. (SS316 Provided On Demand On Extra Cost)
Compact Design Requires Comparatively Smaller Floor Space.
Single Stirrer With Single Speed For Dry & Wet Mixing.
As Stirrer's Sealing Comes In Contact With Product, There May Be Any Black Particle Contamination Problem, After Sealing Bush Got Wear & Tear.
All Non Contact Parts (general Structure)Made Out Of Mild Steel And Claded With Ss304 Or Crome Plated Or Made Out Of Ss304 In Gmp Model. Contact Parts Are Polished To The Mirror Finished And Non Contact Parts Are Polished To The Matt Finished In Gmp Model. All Safety Guards & Covers Made Out Of Ss304 Material In Gmp Model & Made Out Of Mild Steel & Painted In Standard Model.
General Structure & All Non Contact Parts Are Made Out Of Mild Steel & Same Will Painted In Standard Model.
All Moving Parts Are Enclosed With Safety Guards.
Thrust Bearings Are Provided To Carry Out Rigid Thrust Load.
Easy For Cleaning & Operating.
Simply Designed Ss304 Dust Cover Provided With One Port For Material Charging & Inspection.
Interlocking System With Top Dust Cover, To Avoid Accident, During Process.
The Container Tilting System Provided For Easy Unloading Of Material And Easy Cleaning.
Specially Design All Moving Parts Provided With Provision Of Easy Lubrication.

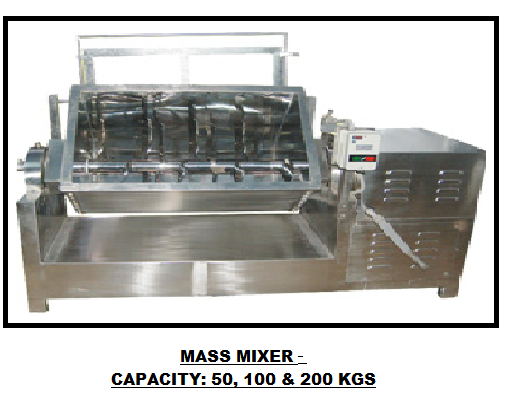

Mass Mixer – Capacity: 50, 100 & 200 Kgs
